Aston Martin V12 Vantage S With The AM28 Engine

By Ganesh

Updated: Saturday, February 1, 2014, 16:17 [IST]

Aston martin promised to bring race car technology to its road cars. It has kept its promise with the all new V12 Vantage S. The most powerful and the fastest regular production Aston Martin ever. Only the One-77 hypercar surpases it in performance, but that was a limited edition model.

At the heart of the new V12 Vantage S is the new fifth generation engine, codenamed AM28. One major change the new 5.9 liter V12 engine brings over the fourth generation AM11 is the addition of a Bosch Engine Management System. The AM28 generates 55 HP more than the outgoing V12 Vantage, while torque figure is up by 37 lb-ft. This has resulted in a top speed that has gone up from 305 km/h to 330 km/h and 0-100 km/h can now be reached in less than 4 seconds.

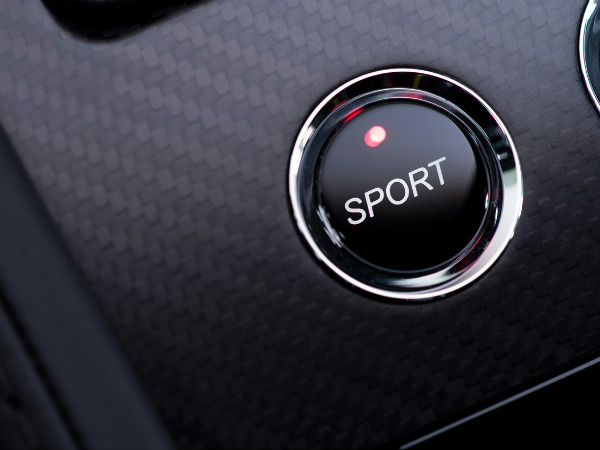

Also new is the seven-speed automated manual Sportshift III AMT transaxle transmission, similar to what is used by Aston's FIA GT race cars. The new gearbox is 25 kg lighter than the outgoing unit. Better road and track performance comes via three new driving modes - Normal', 'Sport' and 'Track'. Selecting one of these alters the damping, providing better control depending on the road type. A new exhaust system derived from the One-77 will give the new Vantage S its signature audio cue.

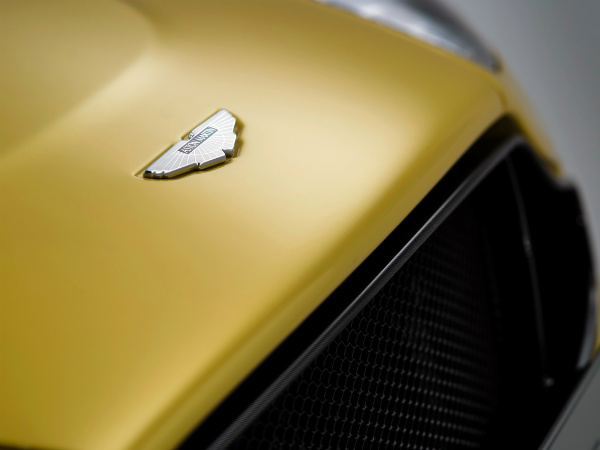

In terms of design, the new V12 Vantage wears the future Aston martin grille design that debuted with the CC100 Speedster concept. Also new are the 10 spoked alloy wheels. Dr Bez added: "The new V12 Vantage S is our most extreme Vantage to date - engineered to bring race car performance and technology to the open road. He added, "It is our most powerful engine in a beautifully tailored suit. It is elegant, yet brutal, and it is at the same time easy to control. It has everything that sums up Aston Martin: power, beauty and soul!"

Body

• Two-seat, two-door coupe body style
• Extruded bonded aluminium VH body structure aluminium, magnesium alloy, composite and steel body
• Extruded aluminium door side-impact beams
• Halogen projector headlamps (main beam)

Body

• High Intensity Discharge headlamps (dipped beam)
• Black headlamp bezels
• LED rear lamps
• Clear rear lamps with a black border
• Carbon fibre front splitter and rear diffuser

Engine

• AM28 all-alloy, quad overhead camshaft, 48 valve, 5,935cc, V12
• Front mid-mounted engine, rear-wheel drive

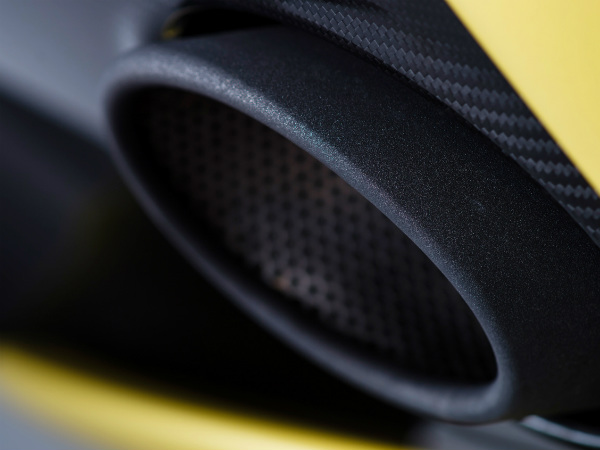

• Fully catalysed stainless steel exhaust system with active bypass valves
• Max power: 565 bhp (573 PS) at 6,750 rpm

Engine

• Max torque: 457 lb ft (620 Nm) at 5,750 rpm
• Acceleration (estimated): 0-60mph in TBC seconds
• Max speed (estimated): 205 mph (330 km/h)

Transmission

• Rear mid-mounted 'Sportshift^TM llI' seven-speed automated manual transmission with electronic shift-by-wire control system
• Alloy torque tube with carbon fibre propeller shaft
• Limited-slip differential
• Final drive ratio 3.7:1

Wheels & tyres

• 19-inch, 10-spoke forged alloy, diamond-turned and Graphite-painted wheels
• Front wheel: 9J x 19"
• Rear wheel: 11J x 19"
• Front tyre: Pirelli P Zero Corsa 255 / 35 ZR19
• Rear tyre: Pirelli P Zero Corsa 295 / 30 ZR19
• Tyre repair kit

Dimensions

Length: 4385 mm (inc. front number plate plinth)
Kerbweight: TBC (estimate)
Width: 2022 mm (inc. mirrors)
Fuel tank capacity: 21.1 US gal (80 litres)
Height: 1250 mm
Wheelbase: 2600 mm

Steering

• Rack and pinion, power-assisted steering
• 2.6 turns lock-to-lock
• Column tilt and reach adjustment

Brakes

• Front: Ventilated carbon ceramic discs, 398 mm diameter with six-piston monobloc calipers
• Rear: Ventilated carbon ceramic discs, 360 mm diameter with four-piston monobloc calipers
• Black painted brake calipers
• Dynamic Stability Control (DSC) with track mode
