Air Brakes: The Ingenious Invention Behind Today's Heavy Vehicle Safety

Updated: Tuesday, January 16, 2024, 17:12 [IST]

George Westinghouse, in 1869 transformed the transport industry by inventing the air brake system. This pivotal invention replaced the manual application of brakes with a system that utilized compressed air, making travel safer and preventing countless accidents.

Air brakes are now indispensable in heavy vehicles, providing a reliable and efficient way to manage stopping power. Their inception marked a significant leap from the precarious manual systems that were fraught with risk and inefficiency.

The significance of air brakes lies in their ability to use compressed air—a safer and more effective alternative to hydraulic fluid—which ensures that our massive carriers of people and goods can come to a stop when needed.

The Mechanics of Air Brakes

Westinghouse's original triple-valve air-brake system was a game-changer, introducing a method that could charge, apply, and release the brakes through air pressure manipulation. This meant that when air pressure was high, the brakes would disengage, and when it dropped, the brakes would activate.

This system was not only ingenious but also provided a fail-safe mechanism, triggering the brakes in the event of a pressure loss.

On the roads, we encounter two main types of brake systems: hydraulic and air. Hydraulic brakes, used in smaller vehicles, depend on a fluid-driven system to exert pressure on the brake pads and bring the vehicle to a stop.

On the other hand, air brakes, which are found in larger vehicles, deploy compressed air to a series of components that work in tandem to slow down or stop the vehicle.

The components of an air brake system include an air compressor, which generates the air; a governor to control the compressor; air reservoir tanks for storing compressed air; drain valves for moisture control; and the foot valve, or brake pedal, that the driver operates.

Brake chambers, push rods, slack adjusters, and the brake S-cam round out the system, translating pedal pressure into physical braking force. Upon pressing the brake pedal, the air pressure decreases, and the S-cam turns, forcing the brake shoes outward against the drum, thereby slowing the vehicle.

Conversely, releasing the pedal increases air pressure and pulls the brake shoes away from the drum, allowing the vehicle to move freely.

Emergency Systems and Maintenance

For the worst-case scenarios, air brakes are equipped with emergency systems that can be manually activated, instantly applying the brakes to prevent a disaster. While this is a vital feature, it is equally important to ensure that these systems are properly maintained.

Regular checks and routine inspections are necessary to keep these complex systems running smoothly and to prevent accidents caused by brake failure.

The importance of conducting preventative maintenance cannot be overstated. Air brake systems require specific operating pressures to function correctly, and it is crucial to check that these are maintained before setting out on a journey.

Monitoring the air pressure buildup rate and ensuring the compressor cut-out governor pressure is within the appropriate range are fundamental steps in maintaining an air brake system.

Another focus of air brake maintenance is moisture control. Water trapped in the system can freeze in cold climates, potentially blocking the air flow and leading to brake failure. Modern air brake systems often incorporate automatic drain valves to combat this issue.

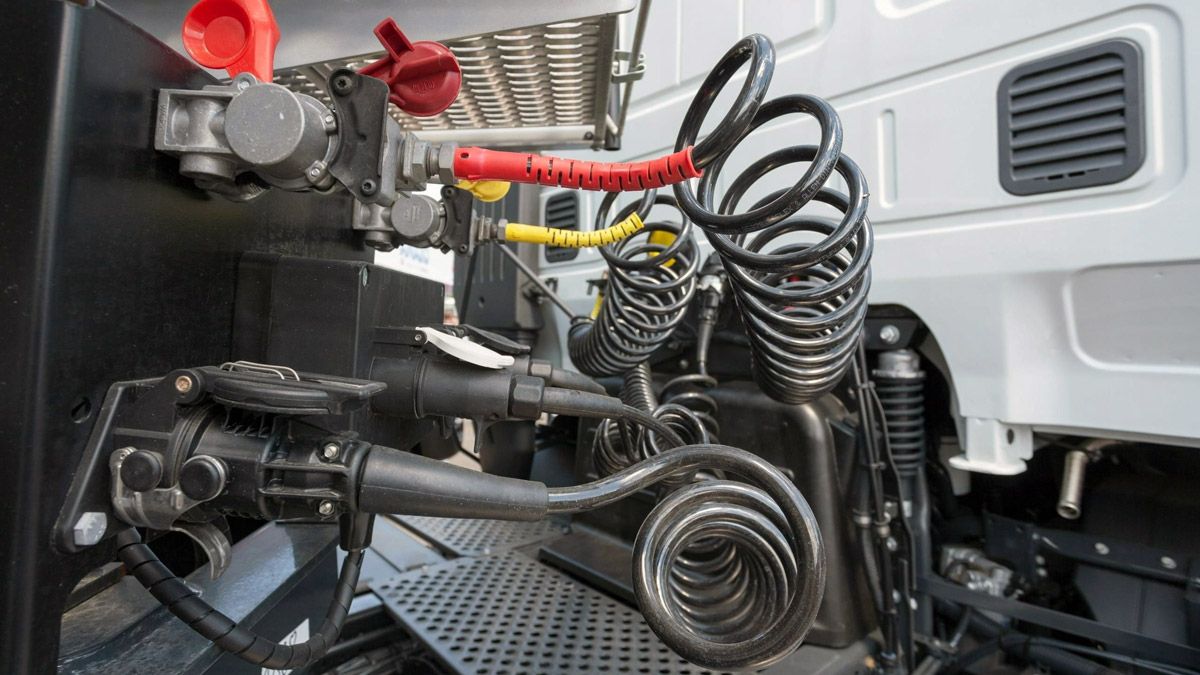

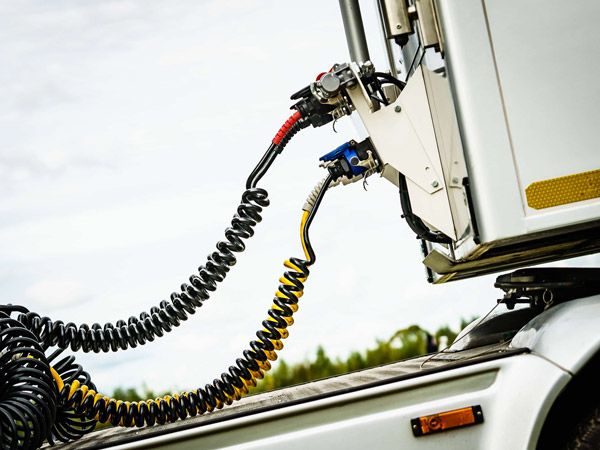

Additionally, it is essential to inspect air couplers and compressor health to prevent leaks and avoid overworking the components, which can lead to premature failure.

Sensitivity and Modern Enhancements

Brake sensitivity is another critical aspect to consider. Vehicles with air brakes, especially those towing light or empty trailers, are prone to locking their rear wheels, which can lead to skid marks and, in more severe cases, jackknifing. Drivers, especially those with less experience, must be aware of how brake sensitivity can change under different loads and driving conditions, such as wet or snowy roads.

Most contemporary vehicles equipped with air brakes feature a dual system, providing a backup in case one system fails. Additionally, anti-lock braking systems (ABS) have been adapted for use in large trucks, working on the same principles as ABS in passenger cars to prevent wheel lockup during hard braking.

Although air brakes are highly effective for large vehicles, they are not suitable for smaller ones due to their complexity and space requirements. Nevertheless, in the realm of heavy-duty transportation, air brakes have proven to be an indispensable component, ensuring the safe and controlled operation of these massive machines.

In conclusion, the air brake system is a cornerstone of modern transportation safety. Regularly maintaining and understanding these systems is crucial for the safe operation of heavy vehicles.

By paying attention to the nuances of air brake function and upkeep, drivers and fleet operators can ensure that they uphold safety standards, prevent brake failure, and contribute to safer roads for everyone. As we continue to advance technologically, the ongoing evolution of air brakes will undoubtedly play a vital role in shaping the future of transportation safety.
