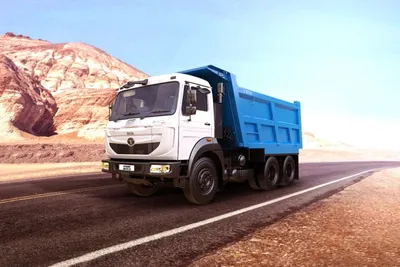

Tata Signa 2823.K HD 9S
Ex-Showroom Price
The Tata Signa 2823.K HD 9S truck is powered by a CUMMINS ISBe 5.6L that produces 219 hp. The Signa 2823.K HD 9S offers a payload capacity of - Kgs. Prices for the Tata Signa 2823.K HD 9S start at Rs 36,26,344 lakhs (ex-showroom).
Tata Signa 2823.K HD 9S KEY FEATURES
| Max Power | 219 hp |
| GVM | 28000 kg |
| Wheel Base | 3880 mm |
| Engine | CUMMINS ISBe 5.6L |
| Fuel Tank | 300 Ltr |
| PayLoad | - Kgs |
Tata Signa 2823.K HD 9S Prices Based on variants
|
36,26,344 Ex-Showroom Price
|
Tata Signa 2823.K HD 9S Specifications & features
Performance
| Max Power | 219 hp |
| Displacement (cc) | 5600 cc |
| Fuel Tank (Litres) | 300 Ltr |
| Engine | CUMMINS ISBe 5.6L |
| Fuel Type | Diesel |
| Emission Norms | BS-VI |
| Max Torque | 850 Nm |
| Acceleration | - |
| Mileage City | - |
| Mileage Highway | - |
| Top Speed | - |
| Mileage | - kmpl |
| Gradeability (%) | - % |
| Max Speed (km/h) | - |
| Engine Cylinders | - |
| Turning Radius (mm) | - |
Dimension
| Overall Length (mm) | - |
| Overall Width (mm) | - |
| Overall Height (mm) | - |
| Ground Clearance (mm) | NA |
| Wheelbase (mm) | 3880 mm |
| Axle Configuration | 6x4 |
| Size (Cu. M) | 16 Box |
Transmission & Loading Capacity
| Transmission | Manual |
| Payload (Kgs) | - Kgs |
| GVW / GCW (Kgs) | 28000 kg |
| Kerb Weight (Kgs) | NA |
| Gear Box | 9-Speed |
| Clutch | 380 mm Dia Single Plate Dry Friction Organic Lining |
| Power Steering | Yes |
Features
| Steering | Power Steering |
| A/C | No |
| Cruise Control | No |
| Navigation System | No |
| Telematics | No |
| Tiltable Steering | Yes |
| Arm-rest | No |
| Seat Type | Standard |
| Driver Information Display | Yes |
| Adjustable Driver Seat | Yes |
| Seating Capacity | D+2 |
| Tubeless Tyres | No |
| Seat Belts | Yes |
| Hill Hold | No |
Brakes & Suspension
| Brakes | New iCGT Brakes |
| Front Axle | Heavy duty forged I beam reverse eliot type |
| Front Suspension | Semi elliptical leaf spring suspension |
| Rear Axle | Single reduction,heavy duty, hypoid gears, with differential lock |
| Rear Suspension | TML bogie suspension |
| ABS | No |
| Parking Brakes | Yes |
Body Option & Cabin Type
| Chassis Type | Chassis with Cabin |
| Body Option | Customizable body |
| Cabin Type | Day Cabin |
| Tiltable Cabin | Yes |
Tyres
| Number Of Tyre | 10 |
| Rear Tyre | 295/95 D20 |
| Front Tyre | 295/95 D20 |
Others
| No. Of Axles | - |
| Axle Types | - |
| Body Brakes | - |
| Chassis | Yes |
| Floor Type | - |
| Body Material | - |
| Canopy Length | - |
| Water Tank Capacity (KL) | - |
| Water Tank Type | - |
| No. Of Valves | - |
| Pump Type | - |
| Bulker Type | - |
| Bulker Discharge Pipe | - |
| Bulker Air Inlet Pipe | - |
| Bulker Equipments | - |
| Bulker Electricals | - |
| Bulker Pressure | - |
| Floor Material | - |
| Side Board Material | - |
| Rear Board Material | - |
| External/Interior Surface | - |
| Refrigerating Unit | - |
| Temperature Range | - |
| Fog Lights | - |
