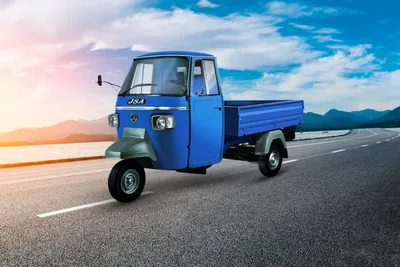

JSA NV
Ex-Showroom Price
The JSA NV truck is powered by a Naturally Aspirated, Water Cooled that produces 9.4 hp. The NV offers a payload capacity of 537 Kgs. Prices for the JSA NV start at Rs 0 lakhs (ex-showroom).
JSA NV KEY FEATURES
| Max Power | 9.4 hp |
| GVM | 995 kg |
| Wheel Base | 2100 mm |
| Engine | Naturally Aspirated, Water Cooled |
| Fuel Tank | 10.25 Ltr |
| PayLoad | 537 Kgs |
JSA NV Prices Based on variants
|
0 Ex-Showroom Price
|
|
|
0 Ex-Showroom Price
|
JSA NV Specifications & features
Performance
| Max Power | 9.4 hp |
| Displacement (cc) | 597.7 cc |
| Fuel Tank (Litres) | 10.25 Ltr |
| Engine | Naturally Aspirated, Water Cooled |
| Fuel Type | Diesel |
| Emission Norms | BS-VI |
| Max Torque | 23.5 Nm |
| Acceleration | - |
| Mileage City | - |
| Mileage Highway | - |
| Top Speed | - |
| Mileage | 25 kmpl |
| Gradeability (%) | - % |
| Max Speed (km/h) | 50 |
| Engine Cylinders | 1 |
| Turning Radius (mm) | - |
Dimension
| Overall Length (mm) | 3100 |
| Overall Width (mm) | 1480 |
| Overall Height (mm) | 1700 |
| Ground Clearance (mm) | 135 |
| Wheelbase (mm) | 2100 mm |
| Axle Configuration | - |
| Length {mm (ft.)} | 1660 |
| Width {mm (ft.)} | 1455 |
| Height {mm (ft.)} | 275 |
Transmission & Loading Capacity
| Transmission | Manual |
| Payload (Kgs) | 537 Kgs |
| GVW / GCW (Kgs) | 995 kg |
| Gear Box | 4 Speed |
| Clutch | Multi Disc, Wet Type |
| Power Steering | No |
Features
| Steering | Handle bar type |
| A/C | No |
| Cruise Control | No |
| Navigation System | No |
| Telematics | No |
| Tiltable Steering | No |
| Arm-rest | No |
| Seat Type | Standard |
| Driver Information Display | Yes |
| Adjustable Driver Seat | No |
| Seating Capacity | Driver Only |
| Tubeless Tyres | No |
| Seat Belts | - |
| Hill Hold | No |
Brakes & Suspension
| Brakes | Drum Brakes |
| Front Axle | - |
| Front Suspension | Helical compression & damper with hydraulic telescopic shock absorber |
| Rear Axle | - |
| Rear Suspension | Rubber compression & damper with hydraulic telescopic shock absorber |
| ABS | No |
| Parking Brakes | Yes |
Body Option & Cabin Type
| Chassis Type | Chassis with Cabin |
| Body Option | Deck Body |
| Cabin Type | Day Cabin |
| Tiltable Cabin | No |
Tyres
| Number Of Tyre | 3 |
| Rear Tyre | 4.50-10, 8PR |
| Front Tyre | 4.50-10, 8PR |
Others
| No. Of Axles | - |
| Axle Types | - |
| Body Brakes | - |
| Chassis | Yes |
| Floor Type | - |
| Body Material | - |
| Canopy Length | - |
| Water Tank Capacity (KL) | - |
| Water Tank Type | - |
| No. Of Valves | - |
| Pump Type | - |
| Bulker Type | - |
| Bulker Discharge Pipe | - |
| Bulker Air Inlet Pipe | - |
| Bulker Equipments | - |
| Bulker Electricals | - |
| Bulker Pressure | - |
| Floor Material | - |
| Side Board Material | - |
| Rear Board Material | - |
| External/Interior Surface | - |
| Refrigerating Unit | - |
| Temperature Range | - |
| Loading Platform Area(Sq.ft) | - |
| Battery(Volts) | 12V DC 50 Ah |
| Fog Lights | - |
