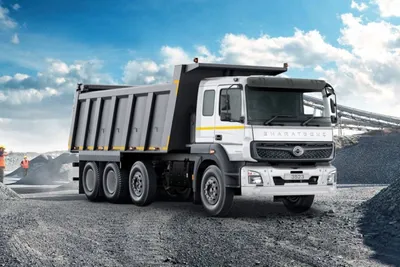

BharatBenz 3523RT

Ex-Showroom Price N/A

The BharatBenz 3523RT truck is powered by a 0M 926 that produces 241 hp. The 3523RT offers a payload capacity of - Kgs. Prices for the BharatBenz 3523RT start at Rs 0 lakhs (ex-showroom).

BharatBenz 3523RT KEY FEATURES

Max Power	241 hp
GVM	35000 kg
Wheel Base	5775 mm

Engine	0M 926
Fuel Tank	380 Ltr
PayLoad	- Kgs

BharatBenz 3523RT Prices Based on variants

BharatBenz 3523RT CBC/5775

0 Ex-Showroom Price

BharatBenz 3523RT Specifications & features

Performance

Max Power	241 hp
Displacement (cc)	7200 cc
Fuel Tank (Litres)	380 Ltr
Engine	0M 926
Fuel Type	Diesel
Emission Norms	BS6
Max Torque	850Nm
Acceleration	-
Mileage City	-
Mileage Highway	-
Top Speed	-
Mileage	- kmpl
Gradeability (%)	19.2 %
Max Speed (km/h)	60
Engine Cylinders	6
Turning Radius (mm)	21600
Range	-
Battery Capacity	120 Ah
Type Of Motor	-

Charging

Charging Time	-
AC & DC (if Available)	-

Dimension

Overall Length (mm)	2585
Overall Width (mm)	2490
Overall Height (mm)	2965
Ground Clearance (mm)	230
Wheelbase (mm)	5775 mm
Axle Configuration	8x2
Size (Cu. M)	-
Length {mm (ft.)}	-
Width {mm (ft.)}	-
Height {mm (ft.)}	-

Transmission & Loading Capacity

Transmission	Manual
Payload (Kgs)	- Kgs
GVW / GCW (Kgs)	35000 kg
Kerb Weight (Kgs)	8787
Gear Box	6 speed
Clutch	395mm Dia, Single plate, Dry type
Power Steering	Yes

Features

Steering	Power steering- Hydraulic Telescopic and Tilt type
A/C	-
Cruise Control	No
Navigation System	No
Telematics	-
Tiltable Steering	-
Arm-rest	No
Seat Type	Standard
Driver Information Display	Yes
Adjustable Driver Seat	-
Seating Capacity	-
Tubeless Tyres	-
Seat Belts	Yes
Hill Hold	-

Brakes & Suspension

Brakes	Fully air S-cam, Dual Circuit
Front Axle	-
Front Suspension	Parabolic
Rear Axle	RS440+, IT10
Rear Suspension	Balancer
ABS	-
Parking Brakes	Yes

Body Option & Cabin Type

Chassis Type	Chassis with Cabin
Body Option	Deck Body
Cabin Type	Sleeper Cabin
Tiltable Cabin	-

Tyres

Number Of Tyre	14
Rear Tyre	295/90R20
Front Tyre	295/90R20

Others

No. Of Axles	-
Axle Types	-
Body Brakes	-
Chassis	Yes
Landing Gear	-
Electricals	-
Floor Type	-
Body Material	-
Canopy Length	-
Water Tank Capacity (KL)	-
Water Tank Type	-
No. Of Valves	-
Pump Type	-
Bulker Type	-
Bulker Discharge Pipe	-
Bulker Air Inlet Pipe	-
Bulker Equipments	-
Bulker Electricals	-
Bulker Pressure	-
Floor Material	-
Side Board Material	-
Rear Board Material	-
External/Interior Surface	-
Refrigerating Unit	-
Temperature Range	-
Loading Platform Area(Sq.ft)	-
Battery(Volts)	24V
Alternator (Amps)	-
Fog Lights	-
