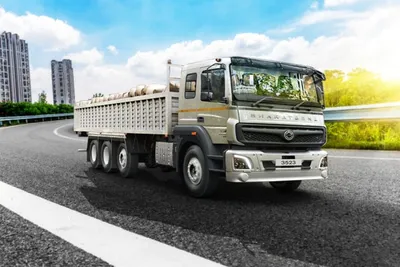

BharatBenz 3523R
Ex-Showroom Price
The BharatBenz 3523R truck is powered by a OM926 that produces 241 hp. The 3523R offers a payload capacity of 26300 Kgs. Prices for the BharatBenz 3523R start at Rs 36,25,817 lakhs (ex-showroom).
BharatBenz 3523R KEY FEATURES
| Max Power | 241 hp |
| GVM | 35000 kg |
| Wheel Base | 5775 mm |
| Engine | OM926 |
| Fuel Tank | 380 Ltr |
| PayLoad | 26300 Kgs |
BharatBenz 3523R Prices Based on variants
|
36,25,817 Ex-Showroom Price
|
|
|
36,98,570 Ex-Showroom Price
|
|
|
37,39,972 Ex-Showroom Price
|
BharatBenz 3523R Specifications & features
Performance
| Max Power | 241 hp |
| Displacement (cc) | 7200 cc |
| Fuel Tank (Litres) | 380 Ltr |
| Engine | OM926 |
| Fuel Type | Diesel |
| Emission Norms | BS-VI |
| Max Torque | 850 Nm |
| Acceleration | - |
| Mileage City | - |
| Mileage Highway | - |
| Top Speed | - |
| Mileage | 4.5 kmpl |
| Gradeability (%) | 18.5 % |
| Max Speed (km/h) | 80 |
| Engine Cylinders | 6 |
| Turning Radius (mm) | 10800 |
Dimension
| Overall Length (mm) | 10492 |
| Overall Width (mm) | 2490 |
| Overall Height (mm) | 2960 |
| Ground Clearance (mm) | 233 |
| Wheelbase (mm) | 5775 mm |
| Axle Configuration | 8x2 |
| Size (Cu. M) | 26 |
| Length {mm (ft.)} | 7924 |
Transmission & Loading Capacity
| Transmission | Manual |
| Payload (Kgs) | 26300 Kgs |
| GVW / GCW (Kgs) | 35000 kg |
| Kerb Weight (Kgs) | - |
| Gear Box | 6-Speed |
| Clutch | 395 mm Single dry plate hydraulic control |
| Power Steering | Yes |
Features
| Steering | Power Steering |
| A/C | Yes |
| Cruise Control | No |
| Navigation System | No |
| Telematics | No |
| Tiltable Steering | Yes |
| Arm-rest | No |
| Seat Type | Standard |
| Driver Information Display | Yes |
| Adjustable Driver Seat | Yes |
| Seating Capacity | D+1 |
| Tubeless Tyres | Yes |
| Seat Belts | Yes |
| Hill Hold | No |
Brakes & Suspension
| Brakes | Pneumatic foot operated dual line brakes |
| Front Axle | IF 7.0 |
| Front Suspension | Parabolic type leaf spring with 2 hydraulic shock absorbers |
| Rear Axle | RA 1 IR440-11 |
| Rear Suspension | Balancer type semi-elliptical leaf spring |
| ABS | Yes |
| Parking Brakes | Yes |
Body Option & Cabin Type
| Chassis Type | Chassis with Cabin |
| Body Option | Customizable body |
| Cabin Type | Day and Sleeper Cabin |
| Tiltable Cabin | Yes |
Tyres
| Number Of Tyre | 12 |
| Rear Tyre | 295/80R22.5 |
| Front Tyre | 295/80R22.5 |
Others
| No. Of Axles | - |
| Axle Types | - |
| Body Brakes | - |
| Chassis | Yes |
| Floor Type | - |
| Body Material | - |
| Canopy Length | - |
| Water Tank Capacity (KL) | - |
| Water Tank Type | - |
| No. Of Valves | - |
| Pump Type | - |
| Bulker Type | - |
| Bulker Discharge Pipe | - |
| Bulker Air Inlet Pipe | - |
| Bulker Equipments | - |
| Bulker Electricals | - |
| Bulker Pressure | - |
| Floor Material | - |
| Side Board Material | - |
| Rear Board Material | - |
| External/Interior Surface | - |
| Refrigerating Unit | - |
| Temperature Range | - |
| Loading Platform Area(Sq.ft) | - |
| Battery(Volts) | 24V 120Ah |
| Fog Lights | - |
