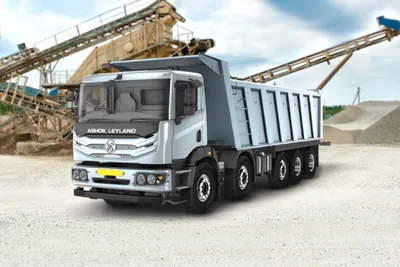

Ashok Leyland 4220 Tipper 10x2

Ex-Showroom Price 36,07,812

The Ashok Leyland 4220 Tipper 10x2 truck is powered by a H series that produces 200 hp. The 4220 Tipper 10x2 offers a payload capacity of - Kgs. Prices for the Ashok Leyland 4220 Tipper 10x2 start at Rs 36,07,812 lakhs (ex-showroom).

Ashok Leyland 4220 Tipper 10x2 KEY FEATURES

Max Power 200 hp
GVM 42000 kg
Wheel Base 6600 mm
Engine H series
Fuel Tank 375 Ltr
PayLoad - Kgs

Ashok Leyland 4220 Tipper 10x2 Prices Based on variants

 0   Ex-Showroom Price
 0   Ex-Showroom Price
 36,07,812   Ex-Showroom Price

Ashok Leyland 4220 Tipper 10x2 Specifications & features

Performance

Max Power 200 hp
Displacement (cc) 5660 cc
Fuel Tank (Litres) 375 Ltr
Engine H series
Fuel Type Diesel
Emission Norms BS-VI
Max Torque 700 Nm
Acceleration -
Mileage City -
Mileage Highway -
Top Speed -
Mileage - kmpl
Gradeability (%) 22 %
Max Speed (km/h) 60
Engine Cylinders 6
Turning Radius (mm) 11885

Dimension

Overall Length (mm) -
Overall Width (mm) -
Overall Height (mm) -
Ground Clearance (mm) NA
Wheelbase (mm) 6600 mm
Axle Configuration 10x2

Transmission & Loading Capacity

Transmission Manual
Payload (Kgs) - Kgs
GVW / GCW (Kgs) 42000 kg
Kerb Weight (Kgs) NA
Gear Box 9-Speed
Clutch 380 mm dia - single dry plate,ceramic clutch, air assisted hydraulic booster
Power Steering Yes

Features

Steering Power Steering
A/C Optional
Cruise Control No
Navigation System No
Telematics No
Tiltable Steering Yes
Arm-rest No
Seat Type Standard
Driver Information Display Yes
Adjustable Driver Seat Yes
Seating Capacity D+1
Tubeless Tyres Optional
Seat Belts Yes
Hill Hold No

Brakes & Suspension

Brakes Air Brakes
Front Axle Forged I section - reverse elliot type
Front Suspension Semi-elliptic multi leaf, Parabolic springs
Rear Axle Fully floating hypoid differential RAR 6.17
Rear Suspension NRS Semi-elliptic
ABS Yes
Parking Brakes Yes

Body Option & Cabin Type

Chassis Type Chassis with Cabin
Body Option Box body
Cabin Type Day Cabin
Tiltable Cabin No

Tyres

Number Of Tyre 14
Rear Tyre 295/90R20
Front Tyre 295/90R20

Others

No. Of Axles -
Axle Types -
Body Brakes -
Chassis Yes
Floor Type -
Body Material -
Canopy Length -
Water Tank Capacity (KL) -
Water Tank Type -
No. Of Valves -
Pump Type -
Bulker Type -
Bulker Discharge Pipe -
Bulker Air Inlet Pipe -
Bulker Equipments -
Bulker Electricals -
Bulker Pressure -
Floor Material -
Side Board Material -
Rear Board Material -
External/Interior Surface -
Refrigerating Unit -
Temperature Range -
Loading Platform Area(Sq.ft) -
Battery(Volts) 24 V, 120 AH
Fog Lights -
