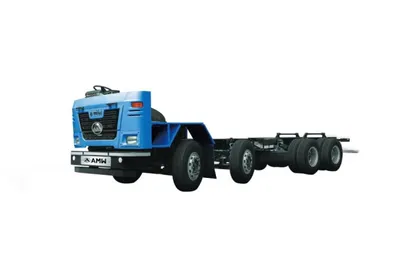

Amw 3116 HL
Ex-Showroom Price
The Amw 3116 HL truck is powered by a CuMmins - 6BTA 5.9 TurboCharged After Cooled that produces 152.8. The 3116 HL offers a payload capacity of 23510 Kgs. Prices for the Amw 3116 HL start at Rs 22,40,000 lakhs (ex-showroom).
Amw 3116 HL KEY FEATURES
| Max Power | 152.8 |
| GVM | 31000 kg |
| Wheel Base | 4040 mm |
| Engine | CuMmins - 6BTA 5.9 TurboCharged After Cooled |
| Fuel Tank | 400 Ltr |
| PayLoad | 23510 Kgs |
Amw 3116 HL Prices Based on variants
|
22,40,000 Ex-Showroom Price
|
Amw 3116 HL Specifications & features
Performance
| Max Power | 152.8 |
| Displacement (cc) | 5883 cc |
| Fuel Tank (Litres) | 400 Ltr |
| Engine | CuMmins - 6BTA 5.9 TurboCharged After Cooled |
| Fuel Type | Diesel |
| Emission Norms | BS-III |
| Max Torque | 590Nm |
| Acceleration | - |
| Mileage City | - |
| Mileage Highway | - |
| Top Speed | - |
| Mileage | - kmpl |
| Gradeability (%) | 18 % |
| Max Speed (km/h) | 70 |
| Engine Cylinders | 6 |
| Turning Radius (mm) | 10000 |
Dimension
| Overall Length (mm) | 6756 |
| Overall Width (mm) | 2450 |
| Overall Height (mm) | - |
| Ground Clearance (mm) | 280 |
| Wheelbase (mm) | 4040 mm |
| Axle Configuration | 8x2 |
| Size (Cu. M) | No |
| Length {mm (ft.)} | 7315 (24) |
| Width {mm (ft.)} | No |
| Height {mm (ft.)} | No |
Transmission & Loading Capacity
| Transmission | Manual |
| Payload (Kgs) | 23510 Kgs |
| GVW / GCW (Kgs) | 31000 kg |
| Kerb Weight (Kgs) | 7490 |
| Gear Box | 6-Speed |
| Clutch | Singledry Plate Coil Type, 380mm |
| Power Steering | Yes |
Features
| Steering | Power |
| A/C | No |
| Cruise Control | No |
| Navigation System | No |
| Telematics | No |
| Tiltable Steering | No |
| Arm-rest | No |
| Seat Type | Standard |
| Driver Information Display | No |
| Adjustable Driver Seat | No |
| Seating Capacity | D+1 |
| Tubeless Tyres | No |
| Seat Belts | No |
| Hill Hold | No |
Brakes & Suspension
| Brakes | Air Brakes |
| Front Axle | Forged I Section Reverse Elliot Type |
| Front Suspension | Semi Elliptical Leaf Springs |
| Rear Axle | Fully Floating Rear Axle With Hypoid Bevel Gears For Forward Rear Axle & Heavy Duty Tubular Trailing Dummy Axle |
| Rear Suspension | Semi Elliptical Leaf Springs With Bell Crank S PR ings |
| ABS | No |
| Parking Brakes | Spring Actuated On Rear Axles |
Body Option & Cabin Type
| Chassis Type | Chassis with Cowl |
| Body Option | Customizable |
| Cabin Type | No Cabin |
| Tiltable Cabin | No |
Tyres
| Number Of Tyre | 12 |
| Rear Tyre | 10R20-16 PR |
| Front Tyre | 10R20-16 PR |
Others
| No. Of Axles | No |
| Axle Types | No |
| Body Brakes | Spring Actuated |
| Chassis | No |
| Landing Gear | No |
| Electricals | 24 V |
| Floor Type | No |
| Body Material | No |
| Canopy Length | No |
| Water Tank Capacity (KL) | No |
| Water Tank Type | No |
| No. Of Valves | No |
| Pump Type | No |
| Bulker Type | No |
| Bulker Discharge Pipe | No |
| Bulker Air Inlet Pipe | No |
| Bulker Equipments | No |
| Bulker Electricals | No |
| Bulker Pressure | No |
| Floor Material | No |
| Side Board Material | No |
| Rear Board Material | No |
| External/Interior Surface | No |
| Refrigerating Unit | No |
| Temperature Range | No |
| Loading Platform Area(Sq.ft) | - |
| Fog Lights | No |
