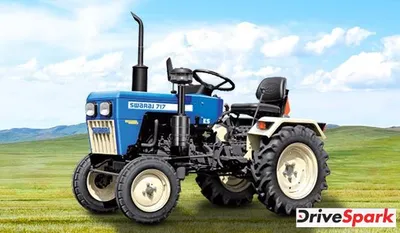

Swaraj 717
Ex-Showroom Price
The Swaraj 717 is powered by a 863.5 cc 1-cylinder diesel engine that produces 15 hp and is paired to a transmission with 6 Forward + 3 Reverse Gears.
Swaraj 717 KEY FEATURES
| Cylinder | 1 |
| HP | 15 |
| Capacity | 863.5 CC |
| Steering | Single Drop Arm |
| Clutch | Single clutch |
| Wheel | 2 WD |
| Lifting Capacity | 780 kg |
Swaraj 717 Specifications & features
Engine
| No. Of Cylinder | 1 |
| HP Category | 15 HP |
| Capacity CC | 863.5 CC |
| Engine Rated RPM | 2300 RPM |
| Cooling | Water Cooled |
| Air Filter | 3-stage oil bath type |
| PTO HP | 9 |
Transmission
| Type | Sliding Mesh |
| Clutch | Single clutch |
| Gear Box | 6 Forward + 3 Reverse |
| Battery | 12 V 50 Ah |
| Alternator | Starter motor |
| Forward Speed | 2.02 - 25.62 kmph |
| Reverse Speed | 1.92 - 5.45 kmph |
Brakes
| Brakes | Dry Disc Brakes |
Steering
| Type | Mechanical |
| Steering Column | Single Drop Arm |
Power Take Off
| Type | Live Single Speed |
| RPM | Standard 540 r/min @ 2053 engine r/min |
Fuel Tank
| Capacity | 23 litre |
Dimensions And Weight Of Tractor
| Total Weight | 850 KG |
| Wheel Base | 1490 MM |
| Overall Length | 2435 MM |
| Overall Width | 1210 MM |
| Ground Clearance | 260 MM |
Hydraulics
| Lifting Capacity | 780 kg |
| 3 Point Linkage | Live Hydraulics , ADDC for l type implement pins |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 5.20 x 14 |
| Rear | 8.00 x 18 |
Other Information
| Accessories | Tools, Top Link |
| Warranty | 750 Hours Or 1 Year |
| Status | Launched |
