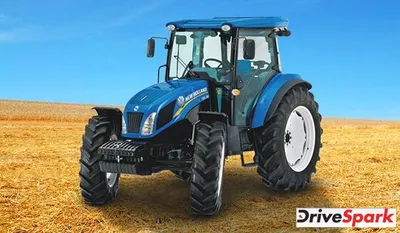

New Holland TD 5.90
Ex-Showroom Price
The New Holland TD 5.90 is powered by a 2900 cc 4-cylinder diesel engine that produces 90 hp and is paired to a transmission with 20 Forward + 12 Reverse Gears.
New Holland TD 5.90 KEY FEATURES
| Cylinder | 4 |
| HP | 90 |
| Capacity | 2900 CC |
| Steering | Power Steering |
| Clutch | Double Clutch with Independent Clutch Lever |
| Wheel | 4 WD |
| Lifting Capacity | 3565 Kg |
New Holland TD 5.90 Specifications & features
Engine
| No. Of Cylinder | 4 |
| HP Category | 90 HP |
| Capacity CC | 2900 CC |
| Engine Rated RPM | 2200 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Type |
| PTO HP | 76.5 |
Transmission
| Type | Fully Synchromesh |
| Clutch | Double Clutch with Independent Clutch Lever |
| Gear Box | 20 Forward + 12 Reverse |
| Battery | 120 Ah |
| Alternator | 55 Amp |
| Forward Speed | 0.3 - 29.1 kmph |
Brakes
| Brakes | Hydraulically Actuated Oil Immersed Multi Disc Brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | Multi Speed |
| RPM | 540 / 540E & Reverse |
Fuel Tank
| Capacity | 110 litre |
Dimensions And Weight Of Tractor
| Total Weight | 3770 KG |
| Wheel Base | 2402 MM |
| Overall Length | 3865 MM |
| Overall Width | 2110 MM |
| Ground Clearance | 410 MM |
Hydraulics
| Lifting Capacity | 3565 Kg |
| 3 Point Linkage | Automatic Depth and Draft Control, Mixed Control, Lift-O-Matic with Height Limiter |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 12.4 x 24 |
| Rear | 18.4 x 30 |
Other Information
| Accessories | Tools, Bumpher, Ballast Weight, Top Link, Canopy, Hitch, Drawbar |
| Additional Features | Auxiliary Valve , 4WD with Fenders , AC Cabin with Heater , Tiltable Steeri, Passenger Seat , Shuttleng Column • Deluxe Seat |
| Warranty | 6000 Hours or 6 Year |
| Status | Launched |
