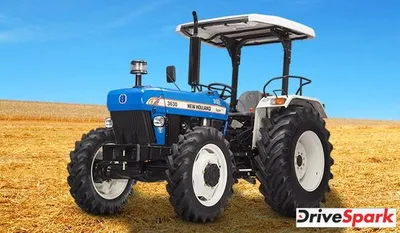

New Holland 3630 TX Plus

Ex-Showroom Price ₹ 7.95-8.50 Lakhs

The New Holland 3630 TX Plus is powered by a 2991 cc 3-cylinder diesel engine that produces 55 hp and is paired to a transmission with 8 Forward + 2 Reverse/ 12 Forward + 3 Reverse Gears.

New Holland 3630 TX Plus KEY FEATURES

Cylinder	3
HP	55
Capacity	2991 CC
Steering	Power Steering

Clutch	Double Clutch with Independent Clutch Lever
Wheel	Both
Lifting Capacity	1700/ 2000 (Optional)

New Holland 3630 TX Plus Specifications & features

Engine

No. Of Cylinder	3
HP Category	55 HP
Capacity CC	2991 CC
Engine Rated RPM	1500 RPM
Cooling	Water Cooled
Air Filter	Dry type
PTO HP	50.7
Fuel Pump	Inline

Transmission

Type	Fully Constant mesh / Partial Synchro mesh
Clutch	Double Clutch with Independent Clutch Lever
Gear Box	8 Forward + 2 Reverse/ 12 Forward + 3 Reverse
Battery	12 V 100AH
Alternator	55 Amp
Forward Speed	0.94 - 31.60 kmph
Reverse Speed	1.34 - 14.86 kmph

Brakes

Oil Immersed Multi Disc Brakes

Steering

Type	Power Steering

Power Take Off

Type	Single PTO / GSPTO
RPM	540

Fuel Tank

Capacity

60 litre

Dimensions And Weight Of Tractor

Total Weight	2080 KG
Wheel Base	2045 MM
Ground Clearance	445 MM
Turning Radius With Brakes	3190 MM

Hydraulics

Lifting Capacity	1700/ 2000 (Optional)
3 Point Linkage	Category I & II, Automatic depth & draft control

Wheels And Tyres

Wheel Drive	Both
Front	7.50 x 16 / 9.5 x 24*
Rear	14.9 x 28 / 16.9 x 28*

Other Information

Accessories	Tool, Top Link, Canopy, Hook, Bumpher, Drarbar
Options	Transmission 12 F+ 3 R
Additional Features	High Speed additional PTO , Adjustable Front Axle , High Lift Capacity Actuated ram, Hydraulically Control Valve, SkyWatchâ„¢, ROPS and Canopy , 12 + 3 Creeper Speeds
Warranty	6000 Hours or 6 Year
Status	Launched
