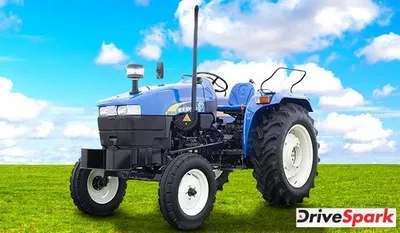

New Holland 3510
Ex-Showroom Price
The New Holland 3510 is powered by a 2365 cc 3-cylinder diesel engine that produces 35 hp and is paired to a transmission with 8 Forward + 2 Reverse Gears.
New Holland 3510 KEY FEATURES
| Cylinder | 3 |
| HP | 35 |
| Capacity | 2365 CC |
| Steering | Mechanical/Power Steering (optional) |
| Clutch | Single clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1500 Kg |
New Holland 3510 Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 35 HP |
| Capacity CC | 2365 CC |
| Engine Rated RPM | 2000 RPM |
| Cooling | Water Cooled |
| Air Filter | Oil Bath with Pre Cleaner |
| PTO HP | 33 |
| Torque | 140 NM |
Transmission
| Type | Fully Constant Mesh AFD |
| Clutch | Single clutch |
| Gear Box | 8 Forward + 2 Reverse |
| Battery | 75 Ah |
| Alternator | 35 Amp |
| Forward Speed | 2.54-28.16 kmph |
| Reverse Speed | 3.11-9.22 kmph |
Brakes
| Brakes | Mechanical, Real Oil Immersed Brakes |
Steering
| Type | Mechanical/Power Steering (optional) |
Power Take Off
| Type | GSPTO and Reverse PTO |
| RPM | 540 |
Fuel Tank
| Capacity | 62 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1770 KG |
| Wheel Base | 1920 MM |
| Overall Length | 3410 MM |
| Overall Width | 1690 MM |
| Ground Clearance | 366 MM |
| Turning Radius With Brakes | 2865 MM |
Hydraulics
| Lifting Capacity | 1500 Kg |
| 3 Point Linkage | Draft Control, Position Control, Top Link Sensing, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve. |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.00 x 16 |
| Rear | 13.6 x 28 |
Other Information
| Accessories | Tools, Bumpher, Ballast Weight, Top Link, Canopy, Hitch, Drawbar |
| Additional Features | 35 HP Engine - Excellent pulling power. , Side- shift Gear Lever - Driver Comfort. , Diaphragm Clutch - Smooth gear shifting. , Anti-corrosive Paint - Enhanced life. , Lift-o-Matic - To lift and return the implement to the same depth. Also having lock system for better safety. , Mobile charger , REVERSE PTO, Bottle Holder |
| Warranty | 6000 Hours or 6 Year |
| Status | Launched |
