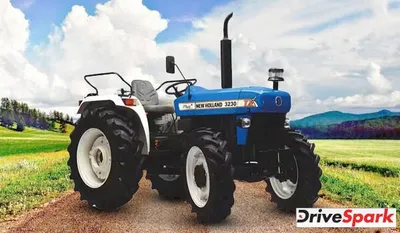

New Holland 3230 TX
Ex-Showroom Price
The New Holland 3230 TX is powered by a 2500 cc 3-cylinder diesel engine that produces 44 hp and is paired to a transmission with 8 Forward + 2/8 Reverse Gears.
New Holland 3230 TX KEY FEATURES
| Cylinder | 3 |
| HP | 44 |
| Capacity | 2500 CC |
| Steering | Power/Mechanical Steering |
| Clutch | Single / Dual clutch |
| Wheel | 4 WD |
| Lifting Capacity | 1800 Kgf |
New Holland 3230 TX Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 44 HP |
| Capacity CC | 2500 CC |
| Engine Rated RPM | 2000 RPM |
| Air Filter | Oil Bath with Pre-Cleaner |
| PTO HP | 38 |
| Torque | 160.7 NM |
Transmission
| Type | Fully constant mesh |
| Clutch | Single / Dual clutch |
| Gear Box | 8 Forward + 2/8 Reverse |
| Battery | 75 Ah |
| Alternator | 35 Amp |
| Forward Speed | 2.39-29.51 kmph |
| Reverse Speed | 3.11-11.30 kmph |
Brakes
| Brakes | Oil Immersed Brakes |
Steering
| Type | Power/Mechanical Steering |
Power Take Off
| Type | Eptraa – 7 speeds |
| RPM | 540 & 540 E |
Fuel Tank
| Capacity | 46 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1810 KG |
| Wheel Base | 1920 MM |
| Overall Length | 3415 MM |
| Overall Width | 1700 MM |
| Ground Clearance | 390 MM |
| Turning Radius With Brakes | 2800 MM |
Hydraulics
| Lifting Capacity | 1800 Kgf |
| 3 Point Linkage | High precision |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 8.3 x 24 |
| Rear | 13.6 X 28 |
Other Information
| Status | Launched |
