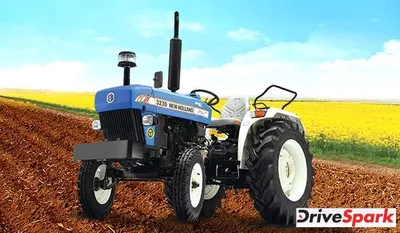

New Holland 3230 TX Super
Ex-Showroom Price
The New Holland 3230 TX Super is powered by a 2500 cc 3-cylinder diesel engine that produces 45 hp and is paired to a transmission with 8 Forward + 2 Reverse Gears.
New Holland 3230 TX Super KEY FEATURES
| Cylinder | 3 |
| HP | 45 |
| Capacity | 2500 CC |
| Steering | Mechanical/Power Steering (optional) |
| Clutch | Single/Double (optional) clutch |
| Wheel | Both |
| Lifting Capacity | 1800 Kg |
New Holland 3230 TX Super Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 45 HP |
| Capacity CC | 2500 CC |
| Engine Rated RPM | 2000 RPM |
| Cooling | Water Cooled |
| Air Filter | Oil Bath with Pre-Cleaner |
| PTO HP | 38 |
| Fuel Pump | Inline |
| Torque | 160.7 NM |
Transmission
| Type | Fully Constant Mesh AFD |
| Clutch | Single/Double (optional) clutch |
| Gear Box | 8 Forward + 2 Reverse |
| Battery | 75 Ah |
| Alternator | 35 Amp |
| Forward Speed | 2.5 – 30.81 kmph |
| Reverse Speed | 3.11 – 11.30 kmph |
Brakes
| Brakes | Mechanical, Real Oil Immersed Brakes |
Steering
| Type | Mechanical/Power Steering (optional) |
Power Take Off
| Type | Eptraa – 7 speeds |
| RPM | 540 |
Fuel Tank
| Capacity | 46 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1810 KG |
| Wheel Base | 1920 MM |
| Overall Length | 3415 MM |
| Overall Width | 1700 MM |
| Ground Clearance | 390 MM |
| Turning Radius With Brakes | 2800 MM |
Hydraulics
| Lifting Capacity | 1800 Kg |
| 3 Point Linkage | Automatic Depth and Draft Control, Mixed Control, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve. |
Wheels And Tyres
| Wheel Drive | Both |
| Front | 6.00 x 16 /6.5 x 16 / 8.3 x 24 |
| Rear | 13.6 x 28 |
Other Information
| Accessories | Tools, Bumpher, Top Link, Ballast Weight, Canopy, Drawbar, Hitch |
| Additional Features | 42 HP, Bharat TERM III A Engine - Powerful and pulling power. , Oil Immersed Disc Brakes - Effective & efficient braking., Side- shift Gear Lever - Driver Comfort. , Anti-corrosive Paint - Enhanced life., Diaphragm Clutch - Smooth gear shifting. , Lift-o-Matic - To lift and return the implement to the same depth. Also having lock system for better safety. , Economy P.T.O - Fuel efficiency., Wider Operator Area - More space for operator. |
| Warranty | 6000 Hours or 6 Year |
| Status | Launched |
