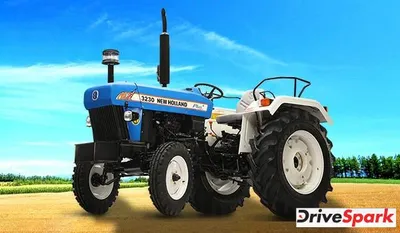

New Holland 3230 NX
Ex-Showroom Price
The New Holland 3230 NX is powered by a 2500 cc 3-cylinder diesel engine that produces 42 hp and is paired to a transmission with 8 Forward + 2 reverse Gears.
New Holland 3230 NX KEY FEATURES
| Cylinder | 3 |
| HP | 42 |
| Capacity | 2500 CC |
| Steering | Mechanical / Power Steering |
| Clutch | Single/Double (optional) clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1500 Kg |
New Holland 3230 NX Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 42 HP |
| Capacity CC | 2500 CC |
| Engine Rated RPM | 2000 RPM |
| Cooling | Water Cooled |
| Air Filter | Oil Bath with Pre-Cleaner |
| PTO HP | 39 |
| Torque | 166 NM |
Transmission
| Type | Fully Constant Mesh AFD |
| Clutch | Single/Double (optional) clutch |
| Gear Box | 8 Forward + 2 reverse |
| Battery | 75 Ah |
| Alternator | 35 Amp |
| Forward Speed | 2.92 – 33.06 kmph |
| Reverse Speed | 3.61 – 13.24 kmph |
Brakes
| Brakes | Mechanical, Real Oil Immersed Brakes |
Steering
| Type | Mechanical / Power Steering |
Power Take Off
| Type | 6 Splines |
| RPM | 540 |
Fuel Tank
| Capacity | 42 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1750 KG |
| Wheel Base | 1910 MM |
| Overall Length | 3270 MM |
| Overall Width | 1682 MM |
| Ground Clearance | 385 MM |
Hydraulics
| Lifting Capacity | 1500 Kg |
| 3 Point Linkage | ADDC |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.0 x 16 |
| Rear | 13.6 x 28 |
Other Information
| Warranty | 6000 Hours or 6 Year |
| Status | Launched |
