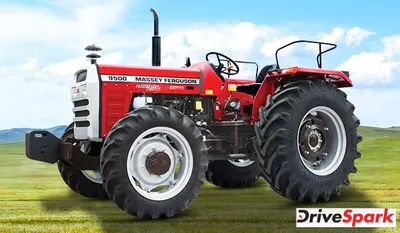

Massey Ferguson 9500 4WD
Ex-Showroom Price
The Massey Ferguson 9500 4WD is powered by a 2700 cc 3-cylinder diesel engine that produces 58 hp and is paired to a transmission with 8 Forward + 8 Reverse Gears.
Massey Ferguson 9500 4WD KEY FEATURES
| Cylinder | 3 |
| HP | 58 |
| Capacity | 2700 CC |
| Steering | Power Steering |
| Clutch | Dual clutch |
| Wheel | 4 WD |
| Lifting Capacity | 2050 kgf |
Massey Ferguson 9500 4WD Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 58 HP |
| Capacity CC | 2700 CC |
| Cooling | Water Cooled |
| PTO HP | 55 |
| Fuel Pump | Rotary |
Transmission
| Type | Comfimesh |
| Clutch | Dual clutch |
| Gear Box | 8 Forward + 8 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 35 A |
| Forward Speed | 31.3 kmph |
| Reverse Speed | 12.9 kmph |
Brakes
| Brakes | Oil immersed brake |
Steering
| Type | Power Steering |
Power Take Off
| Type | Live 6 Spline Single Speed PTO |
| RPM | 540 RPM @ 1790 ERPM |
Fuel Tank
| Capacity | 60 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2660 KG |
| Wheel Base | 1972 MM |
| Overall Length | 3914 MM |
| Overall Width | 1850 MM |
| Ground Clearance | 379 MM |
| Turning Radius With Brakes | 3485 MM |
Hydraulics
| Lifting Capacity | 2050 kgf |
| 3 Point Linkage | Draft, position and response control.Links fitted with Cat 1 and Cat 2 balls (Combi Ball) |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 9.50 x 24 |
| Rear | 16.9 x 28 |
Other Information
| Accessories | Tool, Toplink, Canopy, Hook, Bumpher, Drawbar |
| Additional Features | High torque backup, smooth engaging of the gears when shifting., 4 WD, Asli side shift, Auxiliary pump, Front weights, Spool valve |
| Warranty | 4 (2 Yrs Stnd.+ 2 Yrs Extd.) Year |
| Status | Launched |
