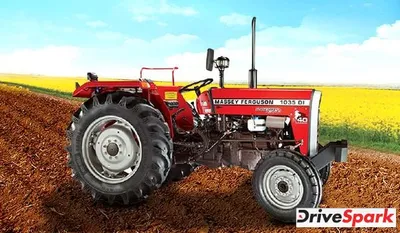

Massey Ferguson 1035 DI Planetary Plus
Ex-Showroom Price
The Massey Ferguson 1035 DI Planetary Plus is powered by a 2400 cc 3-cylinder diesel engine that produces 40 hp and is paired to a transmission with 8 Forward + 2 Reverse / 10 Forward + 2 Reverse Gears.
Massey Ferguson 1035 DI Planetary Plus KEY FEATURES
| Cylinder | 3 |
| HP | 40 |
| Capacity | 2400 CC |
| Steering | Mechanical/Power Steering (optional) |
| Clutch | Dual clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1100 kgf |
Massey Ferguson 1035 DI Planetary Plus Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 40 HP |
| Capacity CC | 2400 CC |
| Engine Rated RPM | 2500 RPM |
| Cooling | Coolant cooled |
| Air Filter | Oil Bath |
| PTO HP | 34 |
Transmission
| Type | Partial Constant mesh |
| Clutch | Dual clutch |
| Gear Box | 8 Forward + 2 Reverse / 10 Forward + 2 Reverse |
| Battery | 12V 75 Ah |
| Alternator | 12 V 36 A |
| Forward Speed | 28.0 kmph |
Brakes
| Brakes | Multi disc oil immersed Brakes |
Steering
| Type | Mechanical/Power Steering (optional) |
Power Take Off
| Type | Live, Six splined shaft |
| RPM | 540 RPM @ 1500 Engine RPM |
Fuel Tank
| Capacity | 47 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1895 KG |
| Wheel Base | 1785 / 1935 MM |
| Overall Length | 3446 MM |
| Overall Width | 1660 MM |
| Ground Clearance | 345 MM |
Hydraulics
| Lifting Capacity | 1100 kgf |
| 3 Point Linkage | Draft, position and response control. Links fitted with Cat 1 & Cat 2 balls (Combi ball) |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.00 x 16 |
| Rear | 12.4 x 28 / 13.6 x 28 |
Other Information
| Additional Features | Push pedal, Hitch rails, Mobile charger, Bottle holder |
| Status | Launched |
