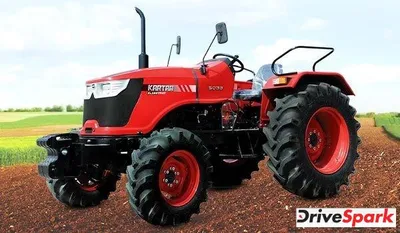

Kartar 5036 4wd
Ex-Showroom Price
The Kartar 5036 4wd is powered by a 3120 cc 3-cylinder diesel engine that produces 50 hp and is paired to a transmission with 8 Forward + 8 Reverse Gears.
Kartar 5036 4wd KEY FEATURES
| Cylinder | 3 |
| HP | 50 |
| Capacity | 3120 CC |
| Steering | Power Steering |
| Clutch | Dual Clutch |
| Wheel | 4 WD |
| Lifting Capacity | 1400 |
Kartar 5036 4wd Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 50 HP |
| Capacity CC | 3120 CC |
| Engine Rated RPM | 2200 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Type |
| PTO HP | 43.4 |
| Torque | 188 NM |
Transmission
| Type | Carraro |
| Clutch | Dual Clutch |
| Gear Box | 8 Forward + 8 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 36 Amp |
| Forward Speed | 32.66 kmph |
| Reverse Speed | 32.33 kmph |
Brakes
| Brakes | Oil Immersed brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | 540, 540E |
| RPM | 540 RPM @ 1728 ERPM, 540E @ 1251 ERPM |
Fuel Tank
| Capacity | 55 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2085 KG |
| Wheel Base | 2010 MM |
| Overall Length | 3560 MM |
| Overall Width | 1728 MM |
| Ground Clearance | 435 MM |
Hydraulics
| Lifting Capacity | 1400 |
| 3 Point Linkage | ADDC |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 8.3x20 |
| Rear | 14.9 x 28 |
Other Information
| Warranty | 2000 hours/ 2 Year |
| Status | Launched |
