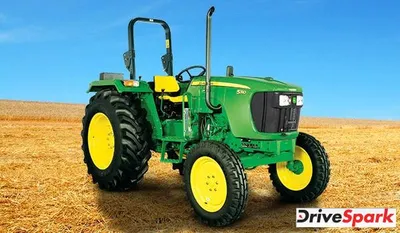

John Deere 5310
Ex-Showroom Price
The John Deere 5310 is powered by a 3-cylinder diesel engine that produces 55 hp and is paired to a transmission with 9 Forward + 3 Reverse Gears.
John Deere 5310 KEY FEATURES
| Cylinder | 3 |
| HP | 55 |
| Capacity | NA |
| Steering | Power Steering |
| Clutch | Wet Clutch |
| Wheel | 2 WD |
| Lifting Capacity | 2000 Kgf |
John Deere 5310 Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 55 HP |
| Engine Rated RPM | 2400 RPM |
| Cooling | Coolant cooled with overflow reservoir |
| Air Filter | Dry type, Dual element |
| PTO HP | 46.7 |
Transmission
| Type | Collarshift |
| Clutch | Wet Clutch |
| Gear Box | 9 Forward + 3 Reverse |
| Battery | 12 V 88 AH |
| Alternator | 12 V 40 A |
| Forward Speed | 2.6 - 31.9 kmph |
| Reverse Speed | 3.8 - 24.5 kmph |
Brakes
| Brakes | Oil Immersed Brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | Independent, 6 Splines |
| RPM | 540 @2376 ERPM |
Fuel Tank
| Capacity | 68 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2250 KG |
| Wheel Base | 2050 MM |
| Overall Length | 3530 MM |
| Overall Width | 1850 MM |
| Ground Clearance | 435 MM |
| Turning Radius With Brakes | 3150 MM |
Hydraulics
| Lifting Capacity | 2000 Kgf |
| 3 Point Linkage | Automatic depth & draft control |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.5 x 20 |
| Rear | 16.9 x 28 |
Other Information
| Accessories | Ballast Weight, Canopy, Canopy Holder, Drawbar, Tow Hook, Wagon Hitch |
| Additional Features | Adjustable front axle, Heavy duty adjustable global axle, Selective Control Valve (SCV) , Reverse PTO (Standard + Reverse), Dual PTO (Standard + Economy), EQRL System, Go home feature, Synchromesh Transmission (TSS) , Without Rockshaft, Creeper Speed |
| Warranty | 5000 Hours/ 5 Year |
| Status | Launched |
