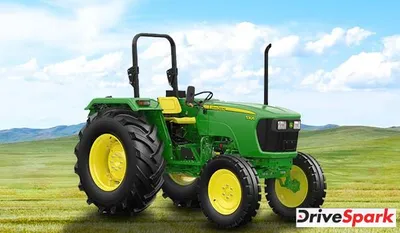

John Deere 5305 Trem IV
Ex-Showroom Price
The John Deere 5305 Trem IV is powered by a 3-cylinder diesel engine that produces 55 hp and is paired to a transmission with 8 Forward + 4 Reverse Gears.
John Deere 5305 Trem IV KEY FEATURES
| Cylinder | 3 |
| HP | 55 |
| Capacity | NA |
| Steering | Power Steering |
| Clutch | Dual Clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1600 Kg |
John Deere 5305 Trem IV Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 55 HP |
| Engine Rated RPM | 2100 RPM |
| Cooling | Coolant cooled with overflow reservoir |
| Air Filter | Dry type with dual element |
| PTO HP | 47.3 |
Transmission
| Type | COLLAR SHIFT + SYNCHRO |
| Clutch | Dual Clutch |
| Gear Box | 8 Forward + 4 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 40 Amp |
Brakes
| Brakes | Oil immersed brakesSelf adjusting, self equalising, Hydraulically actuated, Oil immersed brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | 6 Splines |
| RPM | 540 @ 1600 , 2100 ERPM |
Fuel Tank
| Capacity | 60 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2100 KG |
| Wheel Base | 2020 MM |
| Overall Length | 3512 MM |
| Overall Width | 1844 MM |
Hydraulics
| Lifting Capacity | 1600 Kg |
| 3 Point Linkage | ADDC,Cat- II |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.0 x 16 8PR, 7.5 x 16,8PR (optional) |
| Rear | 14.9 x 28 12PR, 16.9 x28 12PR (optional) |
Other Information
| Warranty | 5000 hours/ 5 Year |
| Status | Launched |
