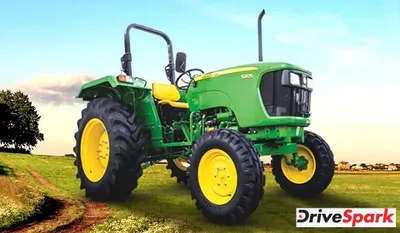

John Deere 5205
Ex-Showroom Price
The John Deere 5205 is powered by a 3-cylinder diesel engine that produces 48 hp and is paired to a transmission with 8 Forward + 4 Reverse Gears.
John Deere 5205 KEY FEATURES
| Cylinder | 3 |
| HP | 48 |
| Capacity | NA |
| Steering | Power Steering |
| Clutch | Single/ Dual clutch |
| Wheel | Both |
| Lifting Capacity | 1600 Kgf |
John Deere 5205 Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 48 HP |
| Engine Rated RPM | 2100 RPM |
| Cooling | Coolant cooled with overflow reservoir |
| Air Filter | Dry Type, Dual Element |
| PTO HP | 40.8 |
Transmission
| Type | Collarshift |
| Clutch | Single/ Dual clutch |
| Gear Box | 8 Forward + 4 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 40 Amp |
| Forward Speed | 2.96-32.39 kmph |
| Reverse Speed | 3.89-14.9 kmph |
Brakes
| Brakes | Oil Immersed Disc Brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | Multi speed, Independent |
| RPM | 540 |
Fuel Tank
| Capacity | 60 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1870 KG |
| Wheel Base | 1950 MM |
| Overall Length | 3355 MM |
| Overall Width | 1778 MM |
| Ground Clearance | 375 MM |
| Turning Radius With Brakes | 2900 MM |
Hydraulics
| Lifting Capacity | 1600 Kgf |
| 3 Point Linkage | Automatic Depth and Draft Control |
Wheels And Tyres
| Wheel Drive | Both |
| Front | 7.50 x 16 |
| Rear | 14.9 x 28 |
Other Information
| Accessories | Canopy , Ballast Weight , Hitch, Drawbar |
| Warranty | 5000 Hours/ 5 Year |
| Status | Launched |
