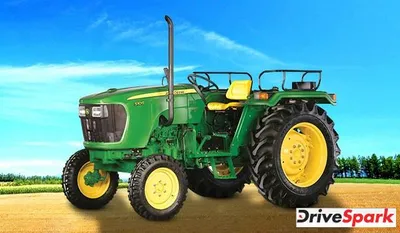

John Deere 5105
Ex-Showroom Price
The John Deere 5105 is powered by a 2900 cc 3-cylinder diesel engine that produces 40 hp and is paired to a transmission with 8 Forward + 4 Reverse Gears.
John Deere 5105 KEY FEATURES
| Cylinder | 3 |
| HP | 40 |
| Capacity | 2900 CC |
| Steering | Power Steering |
| Clutch | Single / Dual clutch |
| Wheel | Both |
| Lifting Capacity | 1600 Kgf |
John Deere 5105 Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 40 HP |
| Capacity CC | 2900 CC |
| Engine Rated RPM | 2100 RPM |
| Cooling | Coolant Cooled |
| Air Filter | Dry type Dual Element |
| PTO HP | 34 |
Transmission
| Type | Collarshift |
| Clutch | Single / Dual clutch |
| Gear Box | 8 Forward + 4 Reverse |
| Forward Speed | 2.84 - 31.07 kmph |
| Reverse Speed | 3.74 - 13.52 kmph |
Brakes
| Brakes | Oil immersed Disc Brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | Independent , 6 Spline |
| RPM | 540 @ 2100 RPM |
Fuel Tank
| Capacity | 60 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1810 KG |
| Wheel Base | 1970 MM |
| Overall Length | 3410 MM |
Hydraulics
| Lifting Capacity | 1600 Kgf |
| 3 Point Linkage | Automatic Depth and Draft Control |
Wheels And Tyres
| Wheel Drive | Both |
| Front | 6.00 x 16 |
| Rear | 13.6 x 28 |
Other Information
| Accessories | Ballast Weight, Canopy, Canopy Holder, Draw Bar, Tow Hook, Wagon Hitch |
| Options | Roll over protection structure (ROPS) with deluxe seat and seat belt |
| Additional Features | PTO NSS, Underhood Exhaust Muffler, Water Separator, Front & Rear oil axle with metal face seal |
| Warranty | 5000 Hours/ 5 Year |
| Status | Launched |
