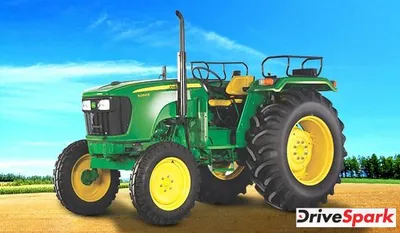

John Deere 5060 E
Ex-Showroom Price
The John Deere 5060 E is powered by a 3-cylinder diesel engine that produces 60 hp and is paired to a transmission with 9 Forward + 3 Reverse Gears.
John Deere 5060 E KEY FEATURES
| Cylinder | 3 |
| HP | 60 |
| Capacity | NA |
| Steering | Tiltable upto 25 degree with lock latch |
| Clutch | Dual clutch |
| Wheel | 2 WD |
| Lifting Capacity | 2000 Kgf |
John Deere 5060 E Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 60 HP |
| Engine Rated RPM | 2400 RPM |
| Cooling | Coolant cooled with overflow reservoir |
| Air Filter | Dry type, Dual Element |
| PTO HP | 51 |
| Fuel Pump | Rotary FIP |
Transmission
| Type | Collarshift |
| Clutch | Dual clutch |
| Gear Box | 9 Forward + 3 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 40 A |
| Forward Speed | 2.3 - 32.8 kmph |
| Reverse Speed | 3.9 - 25.4 kmph |
Brakes
| Brakes | Oil Immersed Disc Brakes |
Steering
| Type | Power |
| Steering Column | Tiltable upto 25 degree with lock latch |
Power Take Off
| Type | Independent, 6 Spline |
| RPM | 540 @ 2376 ERPM |
Fuel Tank
| Capacity | 68 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2130 KG |
| Wheel Base | 2050 MM |
| Overall Length | 3540 MM |
| Overall Width | 1885 MM |
| Ground Clearance | 470 MM |
| Turning Radius With Brakes | 3181 MM |
Hydraulics
| Lifting Capacity | 2000 Kgf |
| 3 Point Linkage | Automatic Depth and Draft Control |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.5 x 20 |
| Rear | 16.9 x 30 |
Other Information
| Accessories | Drawbar, Ballast Weiht, Canopy, Hitch |
| Additional Features | Adjustable Front Axle, Mobile charger |
| Warranty | 5000 Hours/ 5 Year |
| Status | Launched |
