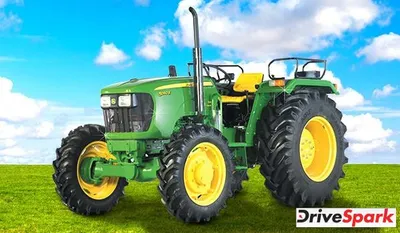

John Deere 5060 E 4WD
Ex-Showroom Price
The John Deere 5060 E 4WD is powered by a 3-cylinder diesel engine that produces 60 hp and is paired to a transmission with 9 Forward + 3 Reverse Gears.
John Deere 5060 E 4WD KEY FEATURES
| Cylinder | 3 |
| HP | 60 |
| Capacity | NA |
| Steering | Power Steering |
| Clutch | Dual clutch |
| Wheel | 4 WD |
| Lifting Capacity | 2000 Kgf |
John Deere 5060 E 4WD Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 60 HP |
| Engine Rated RPM | 2400 RPM |
| Cooling | Coolant cooled with overflow reservoir, Turbo charged |
| Air Filter | Dry type, Dual element |
| PTO HP | 51 |
| Fuel Pump | Rotary FIP |
Transmission
| Type | Collar shift |
| Clutch | Dual clutch |
| Gear Box | 9 Forward + 3 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 33 Amp |
| Forward Speed | 2.05 - 28.8 kmph |
| Reverse Speed | 3.45 - 22.33 kmph |
Brakes
| Brakes | Oil immersed Brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | Independent, 6 Spline |
| RPM | 540 @2376 ERPM |
Fuel Tank
| Capacity | 68 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2410 KG |
| Wheel Base | 2050 MM |
| Overall Length | 3580 MM |
| Overall Width | 1875 MM |
| Ground Clearance | 470 MM |
| Turning Radius With Brakes | 3181 MM |
Hydraulics
| Lifting Capacity | 2000 Kgf |
| 3 Point Linkage | Automatic Depth and Draft Control |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 9.5 X 24 |
| Rear | 16.9 X 28 |
Other Information
| Accessories | Drawbar , Canopy , Hitch , Ballast Wegiht |
| Warranty | 5000 Hours/ 5 Year |
| Status | Launched |
