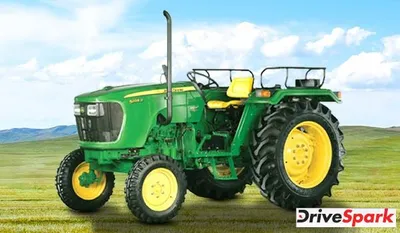

John Deere 5038 D
Ex-Showroom Price
The John Deere 5038 D is powered by a 3-cylinder diesel engine that produces 38 hp and is paired to a transmission with 8 Forward + 4 Reverse Gears.
John Deere 5038 D KEY FEATURES
| Cylinder | 3 |
| HP | 38 |
| Capacity | NA |
| Steering | Power Steering |
| Clutch | Single / Dual clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1600 Kgf |
John Deere 5038 D Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 38 HP |
| Engine Rated RPM | 2100 RPM |
| Cooling | Coolant cooled with overflow reservoir |
| Air Filter | Dry type Dual Element |
| PTO HP | 32.3 |
Transmission
| Type | Collarshift |
| Clutch | Single / Dual clutch |
| Gear Box | 8 Forward + 4 Reverse |
| Battery | 12 V 88 AH |
| Alternator | 12 V 40 A |
| Forward Speed | 3.13 - 34.18 kmph |
| Reverse Speed | 4.10 - 14.84 kmph |
Brakes
| Brakes | Oil Immersed Disc Brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | Independent , 6 Spline, Multi Speed PTO |
| RPM | 540 @ 1600 / 2100 ERPM |
Fuel Tank
| Capacity | 60 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1760 KG |
| Wheel Base | 1970 MM |
| Overall Length | 3400 MM |
| Overall Width | 1780 MM |
| Ground Clearance | 390 MM |
| Turning Radius With Brakes | 2900 MM |
Hydraulics
| Lifting Capacity | 1600 Kgf |
| 3 Point Linkage | Automatic Depth &. Draft Control |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.00 x 16 |
| Rear | 13.6 x 28 |
Other Information
| Accessories | Bumper, Canopy, Canopy Holder, Drawbar, Tow Hook, Wagon Hitch |
| Additional Features | Adjustable front axle, Roll over protection system (ROPS) with deluxe seat & seat belt, Mechanical quick raise and lower (MQRL) manual steering, Dual PTO |
| Warranty | 5000 Hours/ 5 Year |
| Status | Launched |
| Price | 5.40 Lac* |
