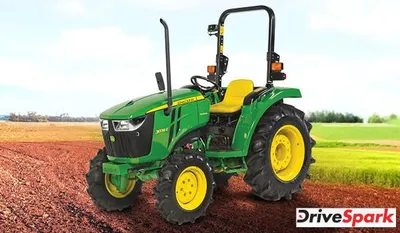

John Deere 3036E
Ex-Showroom Price
The John Deere 3036E is powered by a 3-cylinder diesel engine that produces 35 hp and is paired to a transmission with 8 Forward + 8 Reverse Gears.
John Deere 3036E KEY FEATURES
| Cylinder | 3 |
| HP | 35 |
| Capacity | NA |
| Steering | Power Steering |
| Clutch | Single dry type clutch |
| Wheel | 4 WD |
| Lifting Capacity | 910 Kgf |
John Deere 3036E Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 35 HP |
| Engine Rated RPM | 2800 RPM |
| Cooling | Coolant Cooled with Overflow reservoir |
| Air Filter | Dry type, Dual Element |
| PTO HP | 30.6 |
| Fuel Pump | Inline FIP |
Transmission
| Type | Sync Reverser |
| Clutch | Single dry type clutch |
| Gear Box | 8 Forward + 8 Reverse |
| Battery | 12 V 52 Ah |
| Alternator | 12 v 43 Amp |
| Forward Speed | 1.90- 22.70 kmph |
| Reverse Speed | 1.70- 23.70 kmph |
Brakes
| Brakes | Oil Immersed Disc Brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | Independent, 6 Spline |
| RPM | 540 @2500 ERPM, |
Fuel Tank
| Capacity | 39 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1295 KG |
| Wheel Base | 1574 MM |
| Overall Length | 2919 MM |
| Overall Width | 1455 MM |
| Ground Clearance | 388 MM |
| Turning Radius With Brakes | 2600 MM |
Hydraulics
| Lifting Capacity | 910 Kgf |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 8.0 x 16 (4PR) |
| Rear | 12.4 x 24.4 (4PR) |
Other Information
| Accessories | Ballast Weight , Trailer Brake Kit |
| Options | Roll over Protection Structure (ROPS) , Sync reverser, Finger gaurd, FNR NSS, PTO NSS, Underhood with up draft exhaust muffler, Water separator, Digital hour meter, Radiator screen, metal face seals for front and rear axle |
| Warranty | 5000 Hours/ 5 Year |
| Status | Launched |
