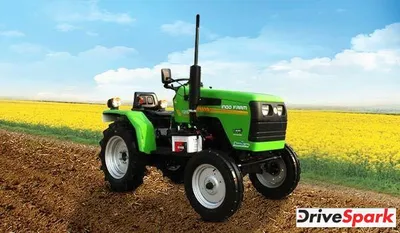

Indo Farm 1020 DI
Ex-Showroom Price
The Indo Farm 1020 DI is powered by a 895 cc 1-cylinder diesel engine that produces 20 hp and is paired to a transmission with 6 Forward + 2 Reverse Gears.
Indo Farm 1020 DI KEY FEATURES
| Cylinder | 1 |
| HP | 20 |
| Capacity | 895 CC |
| Steering | Mechanical - Recirculating ball type (optional) |
| Clutch | Single Clutch |
| Wheel | 2 WD |
| Lifting Capacity | 500 Kg |
Indo Farm 1020 DI Specifications & features
Engine
| No. Of Cylinder | 1 |
| HP Category | 20 HP |
| Capacity CC | 895 CC |
| Engine Rated RPM | 2300 RPM |
| Cooling | Water cooled |
| Air Filter | Oil Bath Type |
| PTO HP | 12 |
| Fuel Pump | Diesel |
Transmission
| Type | Sliding mesh |
| Clutch | Single Clutch |
| Gear Box | 6 Forward + 2 Reverse |
| Battery | 12 Volts-65 Ah |
| Alternator | Self Starter Motor & Alternator |
| Forward Speed | 26.0 kmph |
| Reverse Speed | 12.92 kmph |
Brakes
| Brakes | Oil immersed multiple discs |
Steering
| Type | Mechanical - Recirculating ball type (optional) |
Power Take Off
| Type | 6 Spline |
| RPM | <a href="/cdn-cgi/l/email-protection" class="__cf_email__" data-cfemail="526766621260636262">[email protected]</a> |
Fuel Tank
| Capacity | 23 litre |
Dimensions And Weight Of Tractor
| Total Weight | 800 KG |
| Overall Length | 2520 MM |
| Overall Width | 1050 MM |
| Ground Clearance | 210 MM |
| Turning Radius With Brakes | 2200 MM |
Hydraulics
| Lifting Capacity | 500 Kg |
| 3 Point Linkage | ADDC |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 5.20 x 14 |
| Rear | 8.00 x 18 |
Other Information
| Accessories | Trailor hook, Draw bar, tool kit, operator manual, top link |
| Status | Launched |
