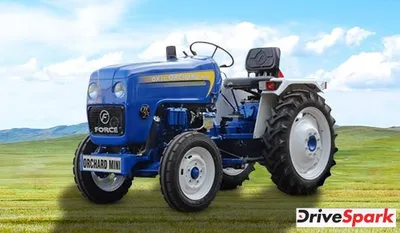

Force ORCHARD MINI
Ex-Showroom Price
The Force ORCHARD MINI is powered by a 1947 cc 3-cylinder diesel engine that produces 27 hp and is paired to a transmission with 8 Forward + 4 Reverse Gears.
Force ORCHARD MINI KEY FEATURES
| Cylinder | 3 |
| HP | 27 |
| Capacity | 1947 CC |
| Steering | Single Drop Arm |
| Clutch | Dry, dual clutch Plate clutch |
| Wheel | 2 WD |
| Lifting Capacity | 950 Kg |
Force ORCHARD MINI Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 27 HP |
| Capacity CC | 1947 CC |
| Engine Rated RPM | 2200 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Air Cleaner |
| PTO HP | 23.2 |
Transmission
| Type | Easy shift Constant mesh |
| Clutch | Dry, dual clutch Plate clutch |
| Gear Box | 8 Forward + 4 Reverse |
| Battery | 12 v 75 Ah |
| Alternator | 14 V 23 Amps |
Brakes
| Brakes | Fully Oil Immersed Multiplate Sealed Disc Brakes |
Steering
| Type | Mechanical Steering |
| Steering Column | Single Drop Arm |
Power Take Off
| Type | Multi Speed PTO |
| RPM | 540 / 1000 |
Fuel Tank
| Capacity | 29 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1395 KG |
| Wheel Base | 1590 MM |
| Overall Length | 2840 MM |
| Overall Width | 1150 MM |
| Ground Clearance | 235 MM |
| Turning Radius With Brakes | 2400 MM |
Hydraulics
| Lifting Capacity | 950 Kg |
| 3 Point Linkage | Category 1 N (Narrow) |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 5.00 x 15 |
| Rear | 8.3 x 24 |
Other Information
| Accessories | Tool, Toplink, Canopy, Hook, Bumpher, Drawbar |
| Status | Launched |
