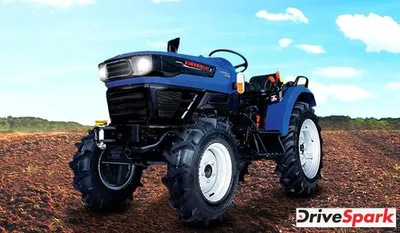

Farmtrac Atom 22
Ex-Showroom Price
The Farmtrac Atom 22 is powered by a 3-cylinder diesel engine that produces 22 hp and is paired to a transmission with 9 Forward + 3 Reverse Gears.
Farmtrac Atom 22 KEY FEATURES
| Cylinder | 3 |
| HP | 22 |
| Capacity | NA |
| Steering | Balanced Power Steering |
| Clutch | Single clutch |
| Wheel | 4 WD |
| Lifting Capacity | 750 kg |
Farmtrac Atom 22 Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 22 HP |
| Engine Rated RPM | 3000 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Type |
| PTO HP | 18.7 |
Transmission
| Type | Constant Mesh |
| Clutch | Single clutch |
| Gear Box | 9 Forward + 3 Reverse |
| Forward Speed | 1.3 - 22.3 kmph |
| Reverse Speed | 1.8 -11.1 kmph |
Brakes
| Brakes | Multi Plate Oil Immersed Brakes |
Steering
| Type | Balanced Power Steering |
Power Take Off
| Type | 6 Splines |
| RPM | 540 ,540 E @ 2504, 2035 |
Fuel Tank
| Capacity | 24 litre |
Dimensions And Weight Of Tractor
| Total Weight | 900 KG |
| Wheel Base | 1430 MM |
| Overall Length | 2760 MM |
| Overall Width | 990 MM |
| Ground Clearance | 300 MM |
| Turning Radius With Brakes | 1900 MM |
Hydraulics
| Lifting Capacity | 750 kg |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 5 x 12 |
| Rear | 8 x 18 |
Other Information
| Warranty | 3000 Hour or 3 Year |
| Status | Launched |
