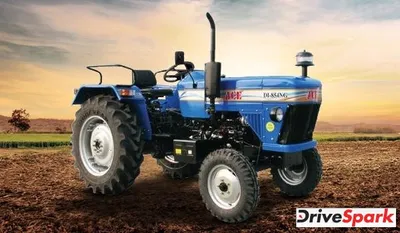

ACE DI-854 NG
Ex-Showroom Price
The ACE DI-854 NG is powered by a 2858 cc 3-cylinder diesel engine that produces 32 hp and is paired to a transmission with 8 FORWARD + 2 REVERSE Gears.
ACE DI-854 NG KEY FEATURES
| Cylinder | 3 |
| HP | 32 |
| Capacity | 2858 CC |
| Steering | Mechanical Steering |
| Clutch | Dry Type Single |
| Wheel | 2 WD |
| Lifting Capacity | 1200 Kg |
ACE DI-854 NG Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 32 HP |
| Capacity CC | 2858 CC |
| Engine Rated RPM | 1800 RPM |
| Cooling | WATER COOLED |
| Air Filter | Dry Air Cleaner With Cooling Sensor |
| PTO HP | 27.2 |
| Torque | 155 NM |
Transmission
| Type | Constant Mesh |
| Clutch | Dry Type Single |
| Gear Box | 8 FORWARD + 2 REVERSE |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 35 Amp |
| Forward Speed | 2.29 – 27.75 kmph |
| Reverse Speed | 2.86 – 11.31 kmph |
Brakes
| Brakes | DRY DISC Brakes/ OIL IMMERSED Brakes(OPTIONAL) |
Steering
| Type | Mechanical Steering |
Power Take Off
| Type | 6 SPLINE |
| RPM | 540 |
Fuel Tank
| Capacity | 57 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1920 KG |
| Wheel Base | 1960 MM |
| Overall Length | 3650 MM |
| Overall Width | 1700 MM |
| Ground Clearance | 395 MM |
| Turning Radius With Brakes | 3020 MM |
Hydraulics
| Lifting Capacity | 1200 Kg |
| 3 Point Linkage | ADDC |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.00X16 |
| Rear | 12.4X28 |
Other Information
| Warranty | 2000 Hours / 2 Year |
| Status | Launched |
| Price | 5.10-5.45 Lac* |
