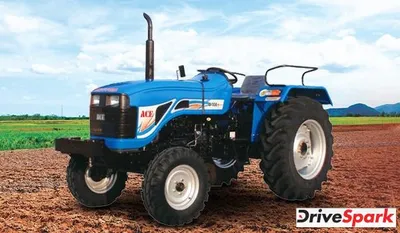

ACE DI-550 STAR
Ex-Showroom Price
The ACE DI-550 STAR is powered by a 3120 cc 3-cylinder diesel engine that produces 50 hp and is paired to a transmission with 8 Forward + 2 Reverse Gears.
ACE DI-550 STAR KEY FEATURES
| Cylinder | 3 |
| HP | 50 |
| Capacity | 3120 CC |
| Steering | Single Drop Arm |
| Clutch | Dual Clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1800 Kgs |
ACE DI-550 STAR Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 50 HP |
| Capacity CC | 3120 CC |
| Engine Rated RPM | 2200 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Air Cleaner |
| PTO HP | 42.5 |
Transmission
| Type | Dry Type |
| Clutch | Dual Clutch |
| Gear Box | 8 Forward + 2 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 42 Amp |
| Forward Speed | 2.6 - 34.0 kmph |
| Reverse Speed | 3.6 - 14.3 kmph |
Brakes
| Brakes | Dry Disc Brakes / Oil Immersed Brakes |
Steering
| Type | Manual / Power Steering (Optional) |
| Steering Column | Single Drop Arm |
Power Take Off
| Type | 6 Splines |
| RPM | 540 |
Fuel Tank
| Capacity | 55 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2145 KG |
| Wheel Base | 2140 MM |
| Overall Length | 3800 MM |
| Overall Width | 1850 MM |
| Ground Clearance | 430 MM |
| Turning Radius With Brakes | 3450 MM |
Hydraulics
| Lifting Capacity | 1800 Kgs |
| 3 Point Linkage | ADDC Live Hydraulics |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 7.50 x 16 |
| Rear | 14.9 x 28 |
Other Information
| Status | Launched |
| Price | 6.75-7.20 Lac* |
