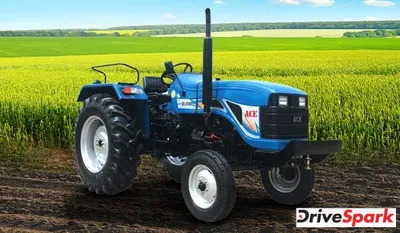

ACE DI-550 NG
Ex-Showroom Price
The ACE DI-550 NG is powered by a 3065 cc 3-cylinder diesel engine that produces 50 hp and is paired to a transmission with 8 FORWARD + 2 REVERSE Gears.
ACE DI-550 NG KEY FEATURES
| Cylinder | 3 |
| HP | 50 |
| Capacity | 3065 CC |
| Steering | Single Drop Arm |
| Clutch | Single /Dual Clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1200 / 1800 Kg |
ACE DI-550 NG Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 50 HP |
| Capacity CC | 3065 CC |
| Engine Rated RPM | 2100 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Air Cleaner |
| PTO HP | 42.5 |
Transmission
| Type | Constant Mesh |
| Clutch | Single /Dual Clutch |
| Gear Box | 8 FORWARD + 2 REVERSE |
| Battery | 88AH-12V |
| Alternator | 12V-35 |
| Forward Speed | 2.68 – 35.16 kmph |
| Reverse Speed | 3.76 – 14.85 kmph |
Brakes
| Brakes | Dry Disc Brakes / OIB |
Steering
| Type | Power Steering |
| Steering Column | Single Drop Arm |
Power Take Off
| Type | 6 SPLINE |
| RPM | 540 & 1000 |
Fuel Tank
| Capacity | 55 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2110 KG |
| Wheel Base | 1960 MM |
| Overall Length | 3660 MM |
| Overall Width | 1830 MM |
| Ground Clearance | 430 MM |
| Turning Radius With Brakes | 3380 MM |
Hydraulics
| Lifting Capacity | 1200 / 1800 Kg |
| 3 Point Linkage | Draft, position and response control |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 7.50X16 |
| Rear | 14.9X28 |
Other Information
| Warranty | 2000 Hours / 2 Year |
| Status | Launched |
| Price | 6.55-6.95 Lac* |
