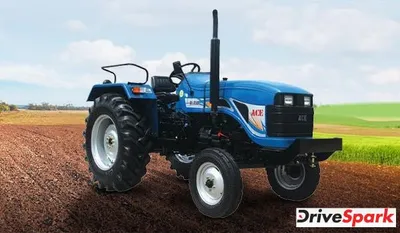

ACE DI-350NG
Ex-Showroom Price
The ACE DI-350NG is powered by a 2858 cc 3-cylinder diesel engine that produces 40 hp and is paired to a transmission with 8 FORWARD + 2 REVERSE Gears.
ACE DI-350NG KEY FEATURES
| Cylinder | 3 |
| HP | 40 |
| Capacity | 2858 CC |
| Steering | Single Drop Arm |
| Clutch | Dual / Single Clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1200 Kg |
ACE DI-350NG Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 40 HP |
| Capacity CC | 2858 CC |
| Engine Rated RPM | 1800 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Type |
| PTO HP | 34 |
Transmission
| Type | Constant Mesh |
| Clutch | Dual / Single Clutch |
| Gear Box | 8 FORWARD + 2 REVERSE |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 35 Amp |
| Forward Speed | 2.37 – 28.72 kmph |
| Reverse Speed | 2.96 – 11.69 kmph |
Brakes
| Brakes | Dry Disc Brakes / OIB |
Steering
| Type | Power Steering |
| Steering Column | Single Drop Arm |
Power Take Off
| Type | 6 SPLINE |
| RPM | 540 |
Fuel Tank
| Capacity | 55 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1930 KG |
| Wheel Base | 1960 MM |
| Overall Length | 3660 MM |
| Overall Width | 1740 MM |
| Ground Clearance | 420 MM |
| Turning Radius With Brakes | 3020 MM |
Hydraulics
| Lifting Capacity | 1200 Kg |
| 3 Point Linkage | Draft, position and response control |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.00X16 |
| Rear | 13.6X28 |
Other Information
| Accessories | TOPLINK, TOOLS |
| Warranty | 2000 Hours / 2 Year |
| Status | Launched |
| Price | 5.55-5.95 Lac* |
