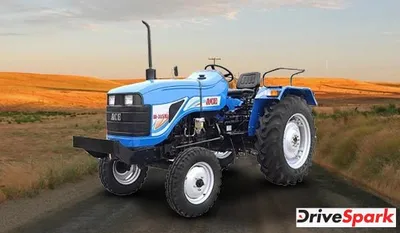

ACE DI-305 NG
Ex-Showroom Price
The ACE DI-305 NG is powered by a 2044 cc 2-cylinder diesel engine that produces 26 hp and is paired to a transmission with 8 Forward + 2 Reverse Gears.
ACE DI-305 NG KEY FEATURES
| Cylinder | 2 |
| HP | 26 |
| Capacity | 2044 CC |
| Steering | Single Drop Arm |
| Clutch | Single Clutch |
| Wheel | 2 WD |
| Lifting Capacity | 1200 Kg |
ACE DI-305 NG Specifications & features
Engine
| No. Of Cylinder | 2 |
| HP Category | 26 HP |
| Capacity CC | 2044 CC |
| Engine Rated RPM | 1800 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Type |
| PTO HP | 23.8 |
Transmission
| Type | Partial Constant Mesh |
| Clutch | Single Clutch |
| Gear Box | 8 Forward + 2 Reverse |
| Battery | 12 V 75 Ah |
| Alternator | 12 V 42 Amp |
| Forward Speed | 2.29 - 27.78 kmph |
| Reverse Speed | 2.86 - 11.31 kmph |
Brakes
| Brakes | Dry Disc |
Steering
| Type | Mechanical Steering |
| Steering Column | Single Drop Arm |
Power Take Off
| Type | 6 Splines |
| RPM | 540 |
Fuel Tank
| Capacity | 55 litre |
Dimensions And Weight Of Tractor
| Total Weight | 1780 KG |
| Wheel Base | 1855 MM |
| Overall Length | 3550 MM |
| Overall Width | 1700 MM |
| Ground Clearance | 395 MM |
| Turning Radius With Brakes | 2940 MM |
Hydraulics
| Lifting Capacity | 1200 Kg |
| 3 Point Linkage | ADDC |
Wheels And Tyres
| Wheel Drive | 2 WD |
| Front | 6.00 x 16 |
| Rear | 12.4 x 28 |
Other Information
| Warranty | 2000 hours/ 2 Year |
| Status | Launched |
| Price | 4.35 - 4.55 Lac* |
