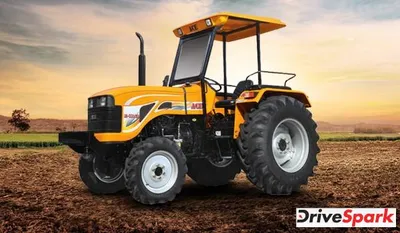

ACE DI 550 NG 4WD
Ex-Showroom Price
The ACE DI 550 NG 4WD is powered by a 3065 cc 3-cylinder diesel engine that produces 50 hp and is paired to a transmission with 8 Forward + 2 Reverse Gears.
ACE DI 550 NG 4WD KEY FEATURES
| Cylinder | 3 |
| HP | 50 |
| Capacity | 3065 CC |
| Steering | Single Drop Arm |
| Clutch | Dual Clutch |
| Wheel | 4 WD |
| Lifting Capacity | 1200 / 1800 Kg |
ACE DI 550 NG 4WD Specifications & features
Engine
| No. Of Cylinder | 3 |
| HP Category | 50 HP |
| Capacity CC | 3065 CC |
| Engine Rated RPM | 2100 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Air Cleaner |
| PTO HP | 42.5 |
Transmission
| Type | Constant Mesh |
| Clutch | Dual Clutch |
| Gear Box | 8 Forward + 2 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 42 Amp |
| Forward Speed | 2.50 - 32.5 kmph |
| Reverse Speed | 3.80 - 13.7 kmph |
Brakes
| Brakes | Oil Immersed Brakes |
Steering
| Type | Power Steering |
| Steering Column | Single Drop Arm |
Power Take Off
| Type | 6 Spline |
| RPM | 540 |
Fuel Tank
| Capacity | 57 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2110 KG |
| Wheel Base | 1960 MM |
| Overall Length | 3790 MM |
| Overall Width | 1835 MM |
| Ground Clearance | 370 MM |
| Turning Radius With Brakes | 4380 - 4850 MM |
Hydraulics
| Lifting Capacity | 1200 / 1800 Kg |
| 3 Point Linkage | ADDC, Live Hydraulic with Mix Mode |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 8 x 18 |
| Rear | 14.9 x 28 , 12 PR |
Other Information
| Status | Launched |
| Price | 6.95-8.15 Lac* |
