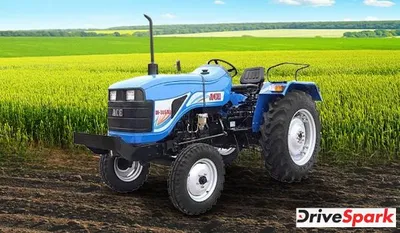

ACE 6565 V2 4WD 24 gears
Ex-Showroom Price
The ACE 6565 V2 4WD 24 gears is powered by a 4088 cc 4-cylinder diesel engine that produces 61 hp and is paired to a transmission with 12 Forward + 12 Reverse Gears.
ACE 6565 V2 4WD 24 gears KEY FEATURES
| Cylinder | 4 |
| HP | 61 |
| Capacity | 4088 CC |
| Steering | Power Steering |
| Clutch | Dual Clutch |
| Wheel | 4 WD |
| Lifting Capacity | 2200 Kg |
ACE 6565 V2 4WD 24 gears Specifications & features
Engine
| No. Of Cylinder | 4 |
| HP Category | 61 HP |
| Capacity CC | 4088 CC |
| Engine Rated RPM | 2200 RPM |
| Cooling | Water Cooled |
| Air Filter | Dry Air Cleaner With Cooling Sensor |
| PTO HP | 52 |
Transmission
| Type | Heavy Duty Carraro |
| Clutch | Dual Clutch |
| Gear Box | 12 Forward + 12 Reverse |
| Battery | 12 V 88 Ah |
| Alternator | 12 V 42 Amp |
| Forward Speed | 1.5 - 30.85 kmph |
| Reverse Speed | 1.27 - 26.22 kmph |
Brakes
| Brakes | Oil immersed Brakes |
Steering
| Type | Power Steering |
Power Take Off
| Type | Live |
| RPM | 540 & 540 E |
Fuel Tank
| Capacity | 65 litre |
Dimensions And Weight Of Tractor
| Total Weight | 2690 KG |
| Wheel Base | 2225 MM |
| Overall Length | 3815 MM |
| Overall Width | 1950 MM |
| Ground Clearance | 384 MM |
| Turning Radius With Brakes | 4600 MM |
Hydraulics
| Lifting Capacity | 2200 Kg |
| 3 Point Linkage | ADDC |
Wheels And Tyres
| Wheel Drive | 4 WD |
| Front | 9.5 X 24 |
| Rear | 16.9 X 28 |
Other Information
| Warranty | 2000 Hour or 2 Year |
| Status | Launched |
| Price | 9.94 - 10.59 Lac* |
